Lumidrive 12V Switch Panel: Centralize the electrical system of your 4x4

Centralize control of your off-road accessories with the Lumidrive Switch Panel

The proliferation of electrical equipment on an off-road vehicle (LED bars, work lights, air compressor, Fridge (12V or winch) quickly transforms the dashboard into a maze of mismatched switches. The Lumidrive Switch Panel control unit offers an elegant, modern, and professional solution for centralizing the management of all your 12V/24V accessories. Available in four versions (4, 6, 8, or 12 buttons depending on the size of your installation), this programmable panel advantageously replaces complex traditional wiring with a remote relay system, drastically simplifying under-hood integration.

Complete customization and three operating modes per button

Each switch in the Lumidrive range is 100% customizable to precisely suit your adventure setup. The control box allows you to independently assign three operating modes to each button: the classic "On/Off" mode for high beams or the FridgeThe "Temporary Activation" (momentary) mode is perfect for a horn or compressor, and the "Strobe" mode is ideal for safety and signaling on tracks or construction sites. The integrated backlight ensures perfect readability in complete darkness during nighttime operations, while customizable pictograms allow users to instantly identify which equipment is in use.

Advanced electronic safety and controlled power for extreme conditions

Designed to withstand the rigors of off-road driving, this control unit safely handles very high amperages. Its electronic architecture incorporates triple active protection against overload, overheating, and reverse polarity, thus preserving the original wiring harness of your Toyota Hilux, Ford Ranger, or Land Rover Defender. Whether you choose the compact 4-button version or the 12-button model for more comprehensive setups, the extended voltage range guarantees impeccable stability on both 12V and 24V circuits. Its sleek design adds a touch of high technology to the cockpit.

Detailed list of components and features

• Backlit indoor control box (available in 4, 6, 8 or 12 button versions)
• Remote power relay box for engine compartment
• Connecting harness between the control panel and the main unit
• Sheet of customizable stickers/pictograms for each button
• Dashboard mounting bracket and screws
• Triple electronic protection: overload, overheating and reverse polarity
• 3 programmable modes per button: On/Off, Momentary, Strobe
• Wide electrical compatibility: 12V and 24V circuits
• Ability to handle high amperage on each output

How does the programming of the 3 modes on each button work?

Programming is done simply and directly from the control panel, without requiring a computer or mobile app. You can choose for each button whether it acts as a classic on/off switch, as a momentary push button (current flows only when pressed), or in strobe mode to make your spotlights flash.

Do additional relays need to be installed under the hood?

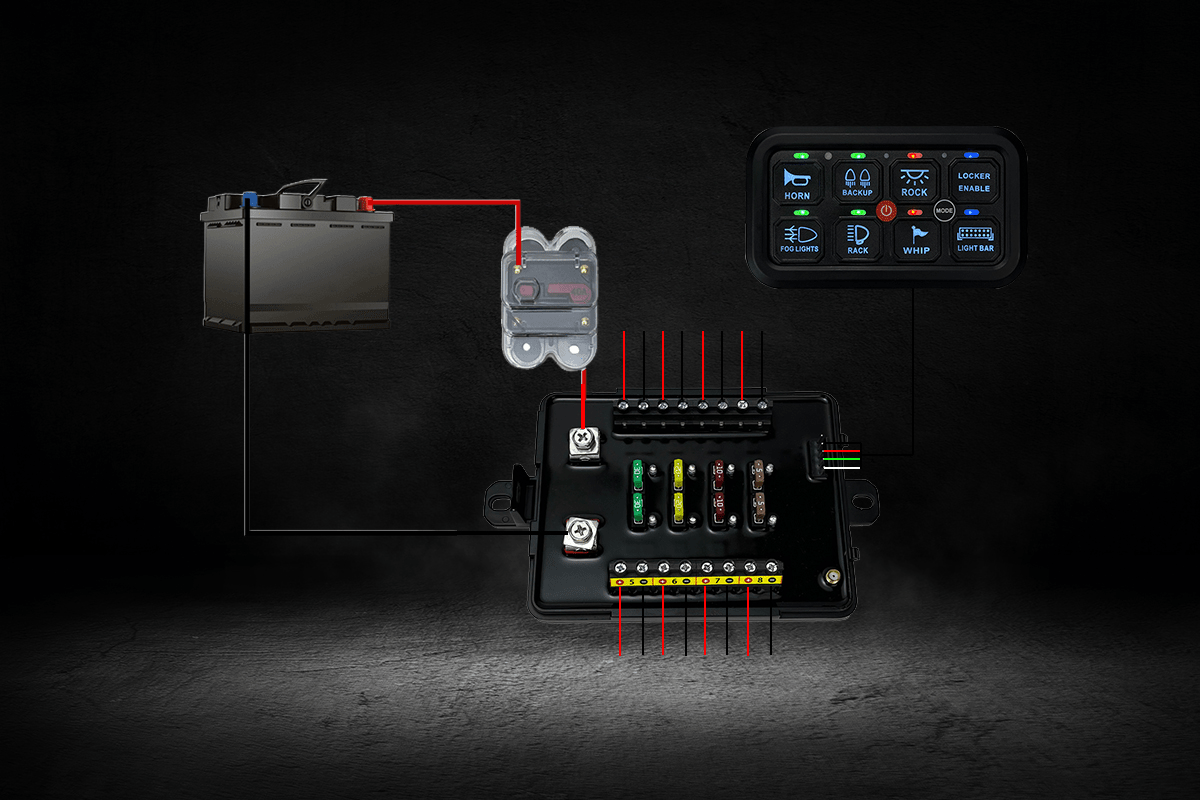

No, the power box included in the kit already incorporates all the necessary relays and electronic fuses for each channel. You simply need to connect the main box to your battery, then plug your equipment (LED strips, compressor, etc.) directly into the corresponding output terminals.

Which version (4, 6, 8 or 12 keys) should I select?

The choice depends on the number of electrical accessories you plan to control. The 4-button version is ideal for a simple installation (LED light bar, taillights, compressor). The 6- and 8-button versions are perfectly suited to mid-range off-road vehicles. The 12-button version is reserved for heavy-duty setups including multiple lights, water pump systems, Fridge and safety equipment.

Is the unit compatible with 24V trucks or shipping vehicles?

Yes, the electronics in the Lumidrive Switch Panel range are designed to work seamlessly over a universal voltage range covering 12V (cars, pickups, vans) and 24V (heavy goods vehicles, shipping trucks) systems.
