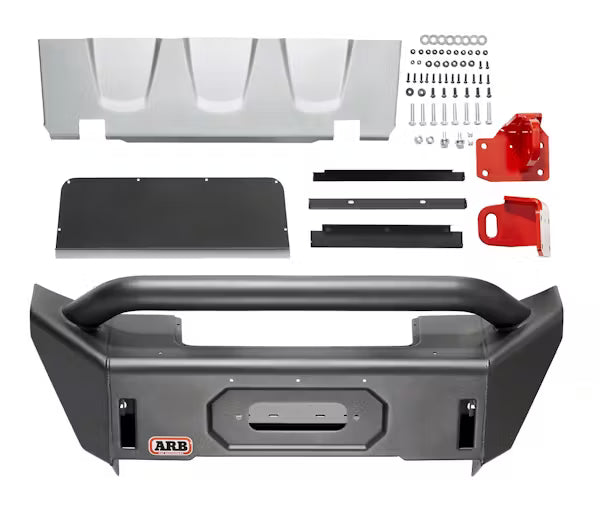

ARB Bondi Stubby Bumper for Jeep Wrangler JL & Gladiator

A Shield of Strength for Your Jeep: ARB Bondi Stubby Bumper

- Assembly Instructions - Installation Guide.PDF (click here)

Dive into the world of 4x4 with the ARB Bondi Stubby bumper, an engineered piece custom-made for the Jeep Wrangler JL and GladiatorAt ARB, innovation and robustness are not just empty words, and this bumper is living proof. Say goodbye to flimsy stock bumpers and hello to superior protection that transforms your vehicle into a true off-road machine, ready to tackle the toughest trails.

Designed with the precision that characterizes the Australian brand, the Bondi Stubby Bumper not only protects, it enhances the aesthetics and functionality of your Jeep. Its unique one-piece, pressed and formed design guarantees rock-solid strength, while its raised fenders maximize clearance for your large-diameter wheels and tires. No more worries about technical crossings, you now have unparalleled room to maneuver.

Full Protection and Functionality

The Bondi Stubby Bumper is more than just an accessory. It's armor. It incorporates a bash plate for the underside of the vehicle, a major asset for protecting the most vulnerable components from impacts and friction. The 76.1 mm diameter protective tube, proudly planted on top, protects your Jeep's grille and headlights, while its twin jacking points, perfect for the ARB Jack or a Hi-Lift, get you out of the most difficult situations.

Compatibility with Winches Warn, Bushranger With a Smittybilt load capacity of up to 4,536 kg (10,000 lbs), this bumper is an indispensable ally for off-road adventures. Installation is simple and straightforward thanks to a separate winch cradle, and the two nominal recovery points, painted bright red, are directly attached to the chassis, ensuring maximum safety and efficiency during recovery maneuvers.

A Design Thought for the Track

The aesthetics of this ARB bumper are anything but ordinary. Its black textured powder-coated Integrit finish, applied over a zinc-rich primer for increased corrosion resistance, gives it a rugged and durable look, perfectly suited to the spirit of an off-roader. The fluid and robust lines perfectly complement those of the Jeep Wrangler JL and the Gladiatoradding a touch of aggression and character to your ride. It adds only 34 mm to the front length, preserving the balance and handling of your vehicle without compromising protection.

Key Features and Specifications:

• Brand : ARB
• Compatible Models: Jeep Wrangler JL (all versions) and Jeep Gladiator (all versions), from 2018 onwards.
• Construction : Durable steel, laser-cut parts.
• Net Weight: 50 kg
• Adding weight to the vehicle: Approximately 31 kg (50 kg - 19 kg removed)
• Finishing : Zinc-rich primer + Integrit black textured powder paint.
• Main tube: 76.1 mm in diameter.
• Lifting Points: Two points for Hi-Lift jack.
• Recovery Points: Two nominal points, fixed to the chassis.
• Winch Compatibility: YES (Warn, Bushranger, Smittybilt up to 4,536 kg).
• Integrated Supports: Two brackets for antennas or long-range lights.
• Included: Plate of Skid Plate (bass plate) vintage silver finish.
• Guarantee : 3 years.
• Assembly time: 90 minutes.

Frequently Asked Questions about the ARB Bondi Stubby Bumper

Is this bumper compatible with the Jeep Wrangler JL 4-door and 2-door models? Yes, this ARB Bondi Stubby bumper is specifically designed to fit all versions of the Jeep Wrangler JL, whether 2-door or 4-door. It is also compatible with the Jeep Gladiator.

Does the bumper come with the recovery points? Absolutely. The Bondi Stubby bumper is equipped with two nominal recovery points, fixed directly to the vehicle's chassis. They are painted red for optimal visibility during recovery maneuvers.

What is the maximum winch capacity that this bumper can accommodate? This bumper is compatible with most of the Winches of the "low mount" type from brands such as Warn, Bushranger or Smittybilt, with a capacity of up to 4,536 kg (10,000 lbs).

Does the vehicle need to be modified to install this bumper? No, the bumper is a vehicle-specific design and mounts directly to the original mounting points. No drilling or chassis modifications are required for installation. Installation is straightforward and takes approximately 90 minutes.

Is the bumper corrosion-resistant? Yes. To ensure maximum durability, the bumper is treated with a zinc-rich primer for superior corrosion resistance, followed by a black textured powder coating in Integrit. This makes it extremely robust against the elements and the harshest off-road conditions.
