Safari Snorkel Mounting Kit for Toyota Hilux GR Sport 2024+

Absolute Precision for Installing Your Safari Snorkel on a Hilux GR Sport

Installing a snorkel on a vehicle as sophisticated as the Toyota Hilux GR Sport (2024 and newer models) leaves no room for improvisation. Unlike standard Hilux models, The GR Sport version features specific wheel arch extensions (flares), wider and more aggressive, which require surgical cutting to allow the snorkel body to pass through. THE Cutting Template Kit Safari 4x4 is the indispensable tool designed specifically to assist installers and enthusiasts during snorkel installation Safari SS123HP. This template ensures that the cutout for the original (OE) fender flare will be perfectly aligned with the windshield pillar and the air intake. ensuring a flawless and watertight factory finish.

A Secure Cut for Perfect Integration

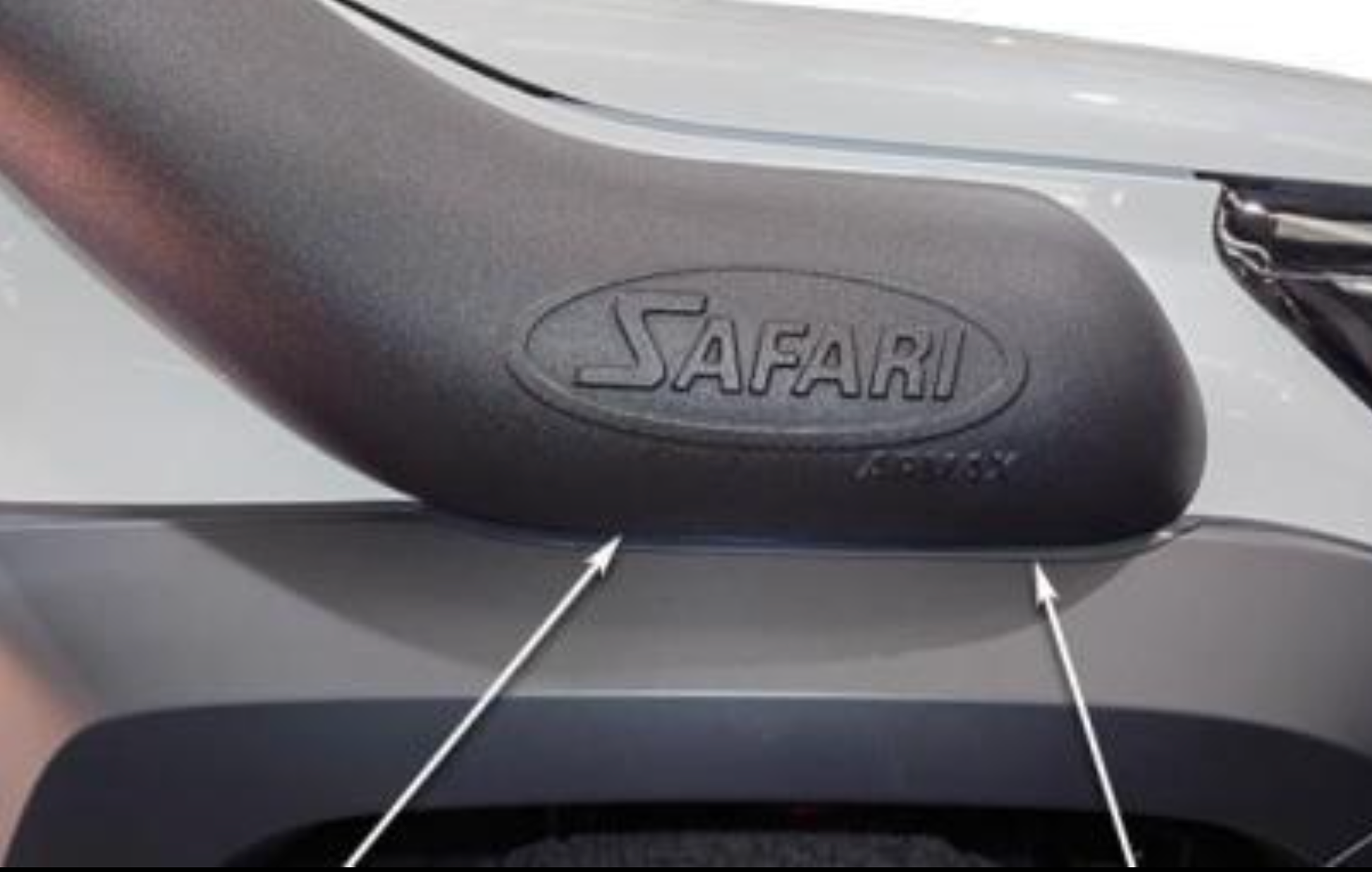

Why is this template essential? Attempting to guess or manually measure the cutting area on a painted plastic spacer is extremely risky. An error of just a few millimeters can ruin the aesthetics of your Hilux GR Sport and compromise the installation of the snorkel. This template is placed directly on the bodywork and serves as a precise guide. It allows you to trace and cut the fender flare with complete confidence. By using this kit, You transform a stressful operation into a controlled technical procedure. The end result is a seamless integration of the Safari SS123HP snorkel. as if it had been installed in a factory, respecting the dynamic lines of the GR Sport trim

Important Notes on Original Mounting Clips

During installation, It is necessary to remove the original fender flare in order to perform the cut. It is important to note that Toyota's retaining clips are fragile and can break during disassembly. even with the best trimming tools. Safari 4x4, in the interest of transparency and service, recommends anticipating this need. If clips happen to break, They can be replaced with genuine Toyota parts. The part numbers to order from your dealer are: Clip Orange (#75396-35020) And Blue Clip (#75395-35070). Having these spare clips on hand before starting the installation will prevent you from being stuck with a loosely reinstalled expander.

Compatibility and Assembly Time

This template kit was developed exclusively for the Toyota Hilux GR Sport MY23 (produced from 09/2023 to 11/2025) equipped with engine 2.8L Diesel. It is not suitable for other versions of the Hilux (Rogue, SR5, etc.) because the geometry of the wings is different. The adjustment and cutting time, using this template, is estimated at approximately 60 minutes. It's a minimal time investment to guarantee the longevity and aesthetics of your off-road preparation. Whether you are a professional in 4x4 equipment or a knowledgeable amateur building your own, This template is the key to a successful installation the first time.

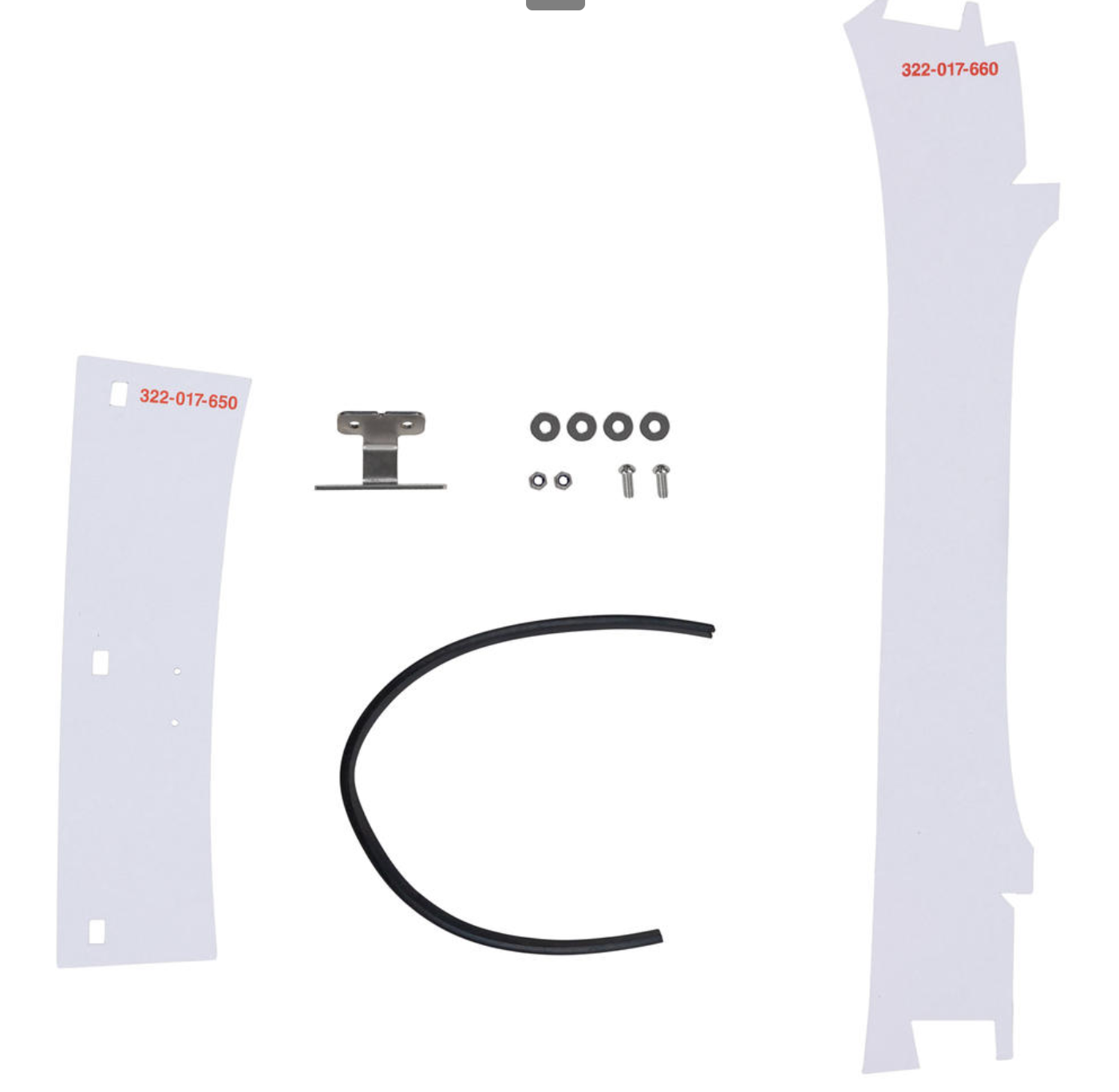

Essential Information (Technical List)

• Mark : Safari 4x4
• Function : Cutting template for fender flare.
• Related Product: Essential for installing the Safari Snorkel SS123HP.
• Compatible Vehicle:
  • Model : Toyota Hilux GR Sport (Double Cabine / Ute).
  • Year : MY23 (September 2023 to November 2025).
  • Motorization: 2.8L Turbo Diesel 4x4.
• Estimated Installation Time: 60 Minutes.
• Installation warning: Risk of breaking the original clips during disassembly.
• Toyota Clip References (in case of breakage):
  • Orange : #75396-35020
  • Blue : #75395-35070
• Material : High-precision cutting guide.
