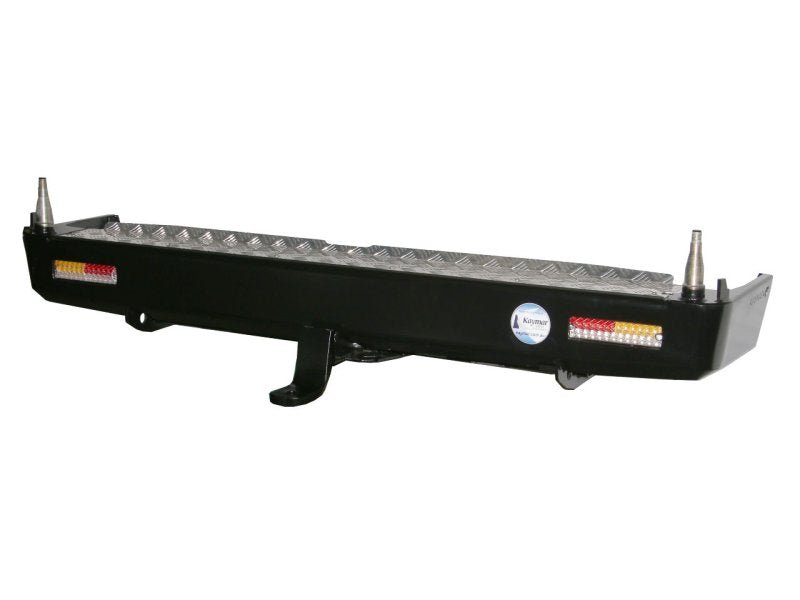

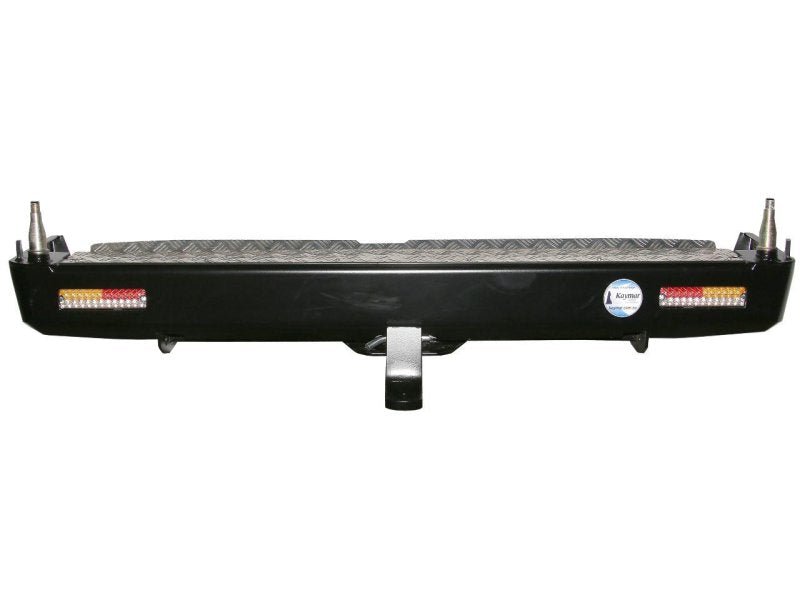

Steel Rear Bumper K1280 Toyota Land Cruiser HZJ75 & HZJ78 - KAYMAR

Prepare your Toyota Land Cruiser HZJ75 or HZJ78 for long-distance travel and demanding off-road conditions with the rear bumper KAYMAR K1280. Made in Australia from5mm steel, it replaces the original rear bumper with a much more robust solution, designed to protect the rear of the vehicle while allowing the installation of a spare wheel carrier, a jerry can holder and a system ofTow bar.

Comes with a finish black epoxy, its mounting kit and its systemTow bar KAYMAR, the K1280 provides a complete basis for fitting out the rear of your Land Cruiser to suit your travel, crossing or shipping needs.

A rear bumper designed for Toyota Land Cruiser HZJ

For over 30 years, KAYMAR develops rear bumpers and accessories in Australia for off-road vehicles used in demanding conditions.

The KAYMAR K1280 is designed specifically for Toyota Land Cruiser HZJ75 and HZJ78 to improve the rear protection of the vehicle and offer more transport possibilities.

Unlike a standard rear bumper primarily designed for road use, the system KAYMAR is aimed at users looking for robust construction and true modularity for long-distance travel and off-roading.

Main features

5mm steel construction

The bumper is made from5mm high tensile steel, allowing it to offer reinforced protection to the rear of the vehicle.

This construction is particularly suitable for Land Cruisers used for:

• Off-road
• Long distance travel
• The tracks
• Expeditions
• Transporting additional equipment

The bumper comes with a black epoxy finish, offering a sober appearance and adapted to the robust style of the Land Cruiser.

Tow bar integrated 50 mm US square

The bumper KAYMAR integrates a support ofTow bar 50 mm US square.

The barTow bar KAYMAR K6006 is provided with the bumper.

This configuration makes it possible to directly integrate theTow bar in the bumper structure.

Important: the US square system KAYMAR is not presented as EEC approved.

For a solution with EEC approval, a separate option can be used depending on the vehicle configuration.

Compatibility with Tow bar EEC approved

A solution ofTow bar approved can be considered with the reference:

ARB-TZK001

Available separately:

Adapter / Tow bar EEC approved ARB 4X4

Before any use for towing, it is essential to check the compliance of the entire installation with the regulations applicable to the vehicle and the country of use.

Integrated pivots for wheel carrier and jerry can holder

The pivots required to install the rear supports KAYMAR are directly integrated into the bumper.

You can therefore upgrade your installation with different accessories available separately.

Possible configurations:

• Left side wheel carrier: KAY-K8105L
• Right side wheel carrier: KAY-K8105R
• Double jerrycan holder left side: KAY-KA1058

This modular design allows you to configure the rear of the vehicle according to your needs.

Wheel carrier up to 33 inches

Compatible wheel carriers can accommodate a spare tire up to 33 inches.

KAYMAR indicates in particular as an equivalence a maximum dimension of approximately:

285/75 R16

This allows you to carry a spare wheel suitable for many off-road preparations without keeping it under the vehicle or inside the passenger compartment.

Integrated LED taillights

The bumper incorporates LED taillights.

A wiring harness is included to allow their connection to the vehicle.

This integration makes it possible to maintain the necessary lighting functions while obtaining a clean finish directly integrated into the bumper.

Hi-Lift jack anchor points

Of anchor points for Hi-Lift jack are directly provided for in the design of the bumper.

This feature can be particularly useful during off-road use, especially when a vehicle must be lifted in conditions where a conventional jack is difficult to use.

Vehicle-specific design

The KAYMAR K1280 is not a universal bumper.

It is developed specifically for compatible vehicles to integrate with the bodywork, original equipment and attachment points of the vehicle.

This specific design allows for a cleaner and more robust installation than a universal solution.

Ideal for 4x4, travel and shipping

The rear bumper KAYMAR K1280 is particularly suitable for owners of Toyota Land Cruiser used for travel and off-roading.

It constitutes an excellent basis for:

• Long distance travel
• Expeditions 4x4
• Camping and bivouac
• Crossing
• Travel to isolated areas
• Carrying an additional spare wheel
• Transportation of jerrycans
• Installing a Tow bar
• Off-road preparations
• Vehicles requiring more rear protection

Its modular design allows the installation to be upgraded as needed.

Technical specifications

Feature	Specification
Brand	KAYMAR
Bumper reference	KAY-KA1280 / K1280
Product	Rear bumper
Compatibility	Toyota Land Cruiser HZJ75 & HZJ78
Material	Steel
Steel thickness	5mm
Finishing	Black epoxy
Tow bar integrated	US square 50 mm
barTow bar provided	KAY-K6006
Accessory holder pivots	Integrated
Hi-Lift jack points	Yes
Rear lights	Integrated LEDs
Electrical harness	Included
Maximum wheel size indicated	33"
Maximum equivalence indicated	Around 285/75 R16
Wheel carrier	Available separately
Jerry can holder	Available separately
Mounting kit	Included
Manufacturing	Australia

Compatibility and important information

The rear bumper KAYMAR K1280 is intended for:

• Toyota Land Cruiser HZJ75
• Toyota Land Cruiser HZJ78

Before ordering, it is recommended to check precisely the model and configuration of your Land Cruiser.

Wheel carrier options

Two wheel carriers are available depending on the desired side:

• KAY-K8105L – left side wheel carrier
• KAY-K8105R – right side wheel carrier

They are sold separately.

Jerrycan holder option

A double jerrycan support is also available:

• KAY-KA1058 – double jerrycan holder on the left side

Sold separately.

Spare wheel

The maximum size listed for the compatible wheel carrier is 33 inches, or approximately 285/75 R16 according to the information KAYMAR provided.

Tow bar and approval

The bumper is supplied with the barTow bar KAY-K6006 using a 50mm US square.

This configuration is not indicated as EEC approved.

An alternative EEC approved solution can be considered with the reference ARB-TZK001, depending on vehicle configuration and applicable regulatory requirements.

Long range tank

System design KAYMAR also allows you to retain the possibility of installing a long range fuel tank, depending on the configuration of the vehicle and other installed equipment.

Reversing camera

No rear view camera kit is available for this bumper.

This is important to consider if your vehicle has a camera system or if you plan to add one.

An Australian design designed for difficult conditions

Rear bumpers KAYMAR are developed and tested in Australia to meet the needs of users traveling in demanding conditions.

KAYMAR develops systems specific to each vehicle in order to combine:

• Reinforced rear protection
• Additional transport possibilities
• Integration of accessories
• Compatibility with spare wheel
• Compatibility with jerrycans
• SystemTow bar integrated
• Improved rear vehicle functionality

The brand exports its equipment to many countries and benefits from more than 30 years of experience in the design of rear bumpers and accessories for 4x4.

Warranty

The specific warranty period of the KAYMAR K1280 is not specified in the information provided for this reference.

The applicable guarantee will therefore be that indicated in the commercial conditions KAYMAR and Xperts4x4 at the time of purchase.

Frequently asked questions

Is this bumper compatible with the Toyota HZJ75 ?

Yes. The KAYMAR K1280 is indicated as compatible with the Toyota Land Cruiser HZJ75.

Is it compatible with the Toyota HZJ78?

Yes. It is also designed for Toyota Land Cruiser HZJ78.

Is the bumper made of steel?

Yes. He uses a 5mm steel construction with black epoxy finish.

TheTow bar is it included?

Yes. The barTow bar KAY-K6006 is supplied with the bumper and uses a 50mm US square.

TheTow bar supplied is it EEC approved?

The US square system supplied is not indicated as EEC approved.

An approved solution can be considered separately with the reference ARB-TZK001, subject to compatibility and applicable regulatory requirements.

Can we install a wheel carrier?

Yes. The necessary pivots are integrated into the bumper.

Wheel carriers are available separately:

• KAY-K8105L left side
• KAY-K8105R right side

What size wheel can be installed?

The maximum size indicated is 33 inches, or approximately 285/75 R16.

Can jerrycans be installed?

Yes. The double jerry can holder KAY-KA1058 can be installed on the left side and is sold separately.

Are LED lights included?

Yes. Of LED rear lights are integrated to the bumper and a wiring harness is provided.

Is the mounting kit included?

Yes. The bumper comes with its assembly kit and instructions.

Can you use a Hi-Lift jack?

Yes. Of anchor points dedicated to the Hi-Lift jack are integrated into the bumper.

Is there a reversing camera kit?

No. No rear view camera kit is available for this configuration.
