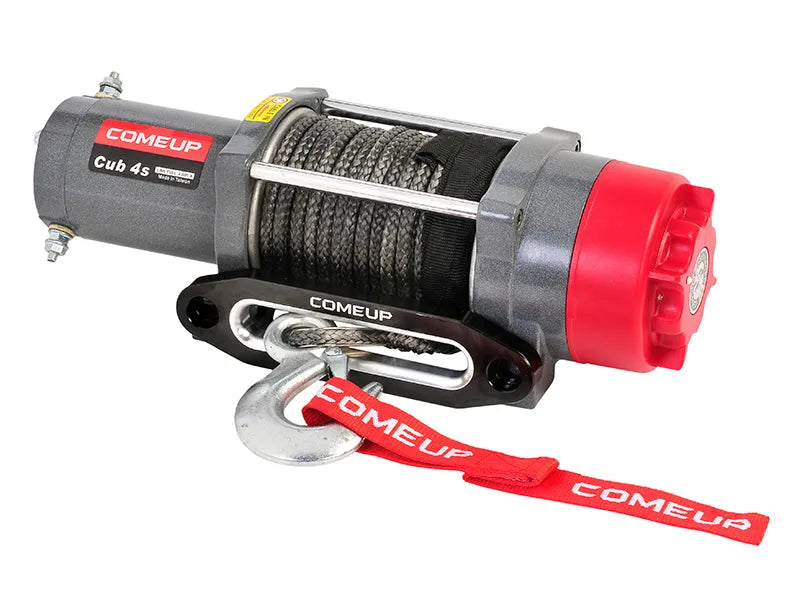

COMEUP ATV CUB4 winch S 12V – Compact, Powerful & Robust 🚀
📌 Link to the user manual : Download here
Designed for off-road and quad enthusiasts, the COMEUP ATV CUB4 WINCH S 12V provides exceptional traction performance with a force of 1,814 kgLightweight and ultra-compact, it guarantees simple installation and reliable operation, even in the most extreme conditions.
Why choose the COMEUP ATV CUB4 Winch S ?
✔ High efficiency motor : Low amp draw thanks to a sealed permanent magnet motor.
✔ Ultra-safe braking system : Mechanical brake at Coil spring and dynamic engine braking.
✔ Heavy duty gear : 3-stage planetary transmission for maximum power.
✔ Compact design : Easy installation and smooth appearance with a centered drum.
✔ Durable synthetic rope : 5.5 mm x 15.2 m for optimal durability.
Technical Specifications 🔧
- Force de traction : 1 814 kg (4 000 lb)
- Line speed (1st layer) : 4.6 m/min (no load) - 2.0 m/min (full load)
- Engine : 800 W / 1.0 HP - 12V permanent magnet
- Brake : Mechanics at Coil spring + dynamic engine brake
- Rope : Synthetic 5.5 mm x 15.2 m with safety hook
- Drum dimensions : 55 x 104 x 119 mm
- Total weight : 8 kg (with rope)
FAQ - Everything you need to know about the COMEUP ATV CUB4 Winch S
🔹 Is this winch compatible with my quad or buggy?
Yes, it is designed to fit most quads and buggies thanks to its universal mounting pattern 76 x 168 mm.
🔹 Can it be used in the rain or mud?
Yes! Its waterproof switch and robust cast aluminum construction make it resistant to weather and extreme conditions.
🔹 What is the recommended maintenance?
It is advisable to regularly check the tension and condition of the synthetic rope, as well as cleaning the electrical connections for optimal longevity.
🔹 Can it be used for lifting loads?
⚠ No ! This winch is designed for horizontal traction only. It should not be used for lifting personnel or vertical loads.
🔹 What accessories does it come with?
✅ Synthetic rope 5.5 mm x 15.2 m
✅ Handlebar switch
✅ Aluminum cable guide (hawse fairlead)
✅ Waterproof contactor pack
✅ Mounting kit and screws
