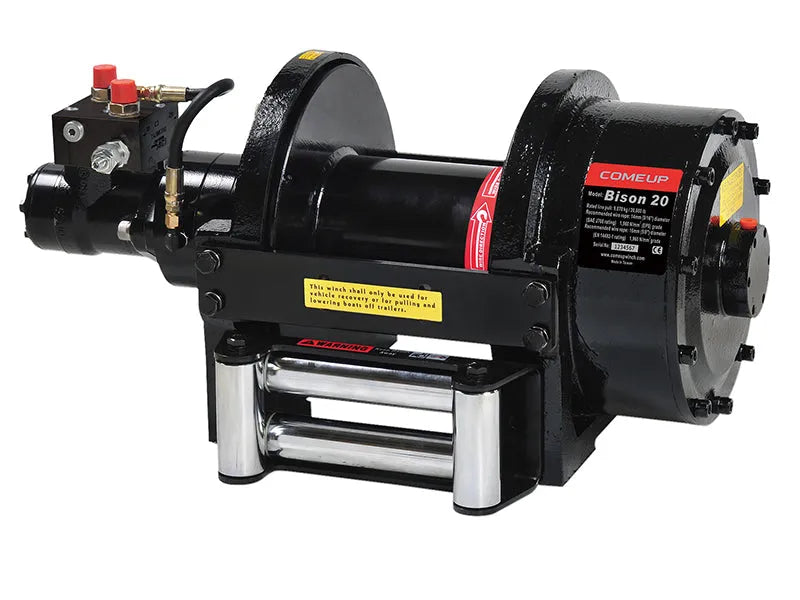

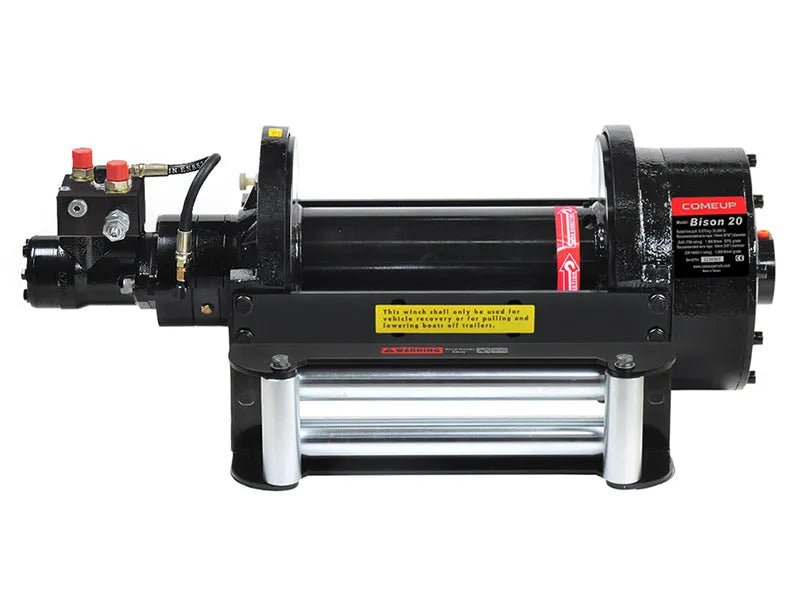

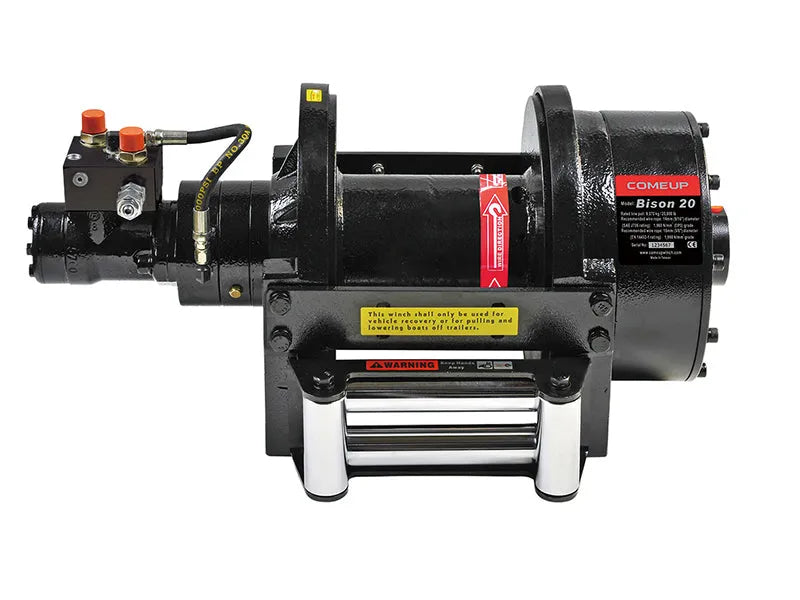

COMEUP BISON 20 Hydraulic Winch - 9,070 kg
Designed for off-road professionals and enthusiasts, the COMEUP BISON 20 hydraulic winch offers an exceptional power of 9,070 kg (20,000 lb). Ideal for recovery vehicles, heavy trailers and demanding off-road applications, it guarantees unmatched reliability and performance.
Key Features
- Traction capacity: 9,070 kg (20,000 lb)
- Hydraulic motor 155.7 cm3/rev high efficiency
- Fast Cable Speed: 7.1 m/min at 60 L/min
- Patented Multi-Disc Brake (MDB) for optimal charge retention
- 2-stage planetary gearbox (30:1) for smooth traction
- Weight: 135kg

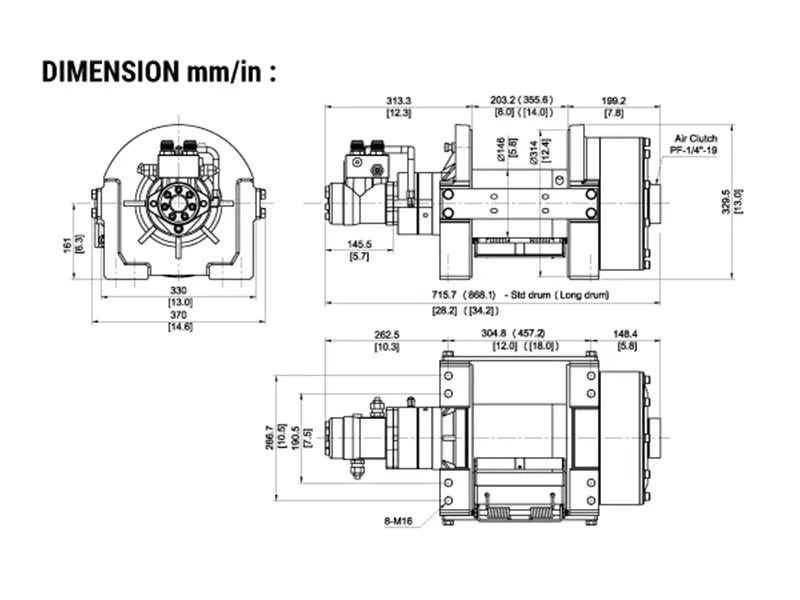

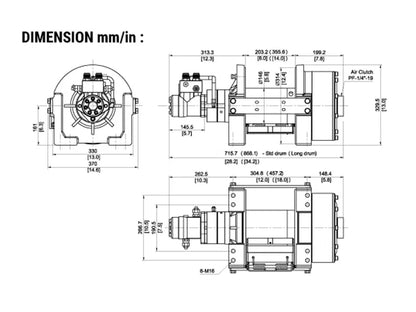

- Dimensions Colis : 870 x 500 x 510 mm
-
Pneumatic clutch for rapid cable unwinding
- Delivered with :
- Roller cable guide
- Cable tensioning system
- Counterweight valve
- Compliant with standards SAE J706, CE 2006/42/EC, EN 14492-1
Winch Performance
- Operating pressure: 175 bar (2,540 psi)
- Max oil flow: 60 L/min
- Drum diameter: 146 mm
- Recommended cable resistance: 16 mm x 30 m (179 kN min.)
Why Choose the COMEUP BISON 20 Winch?
The COMEUP BISON 20 hydraulic winch is designed for the most extreme applications:
- Heavy use: Ideal for breakdown recovery, towing and off-roading
- Hydraulic reliability: Operates with a power take-off (PTO) powered engine
- Maximum security: Patented brake and counterbalance valve included
FAQ: Everything you need to know about the COMEUP BISON 20 winch
1. Is this winch compatible with my vehicle?

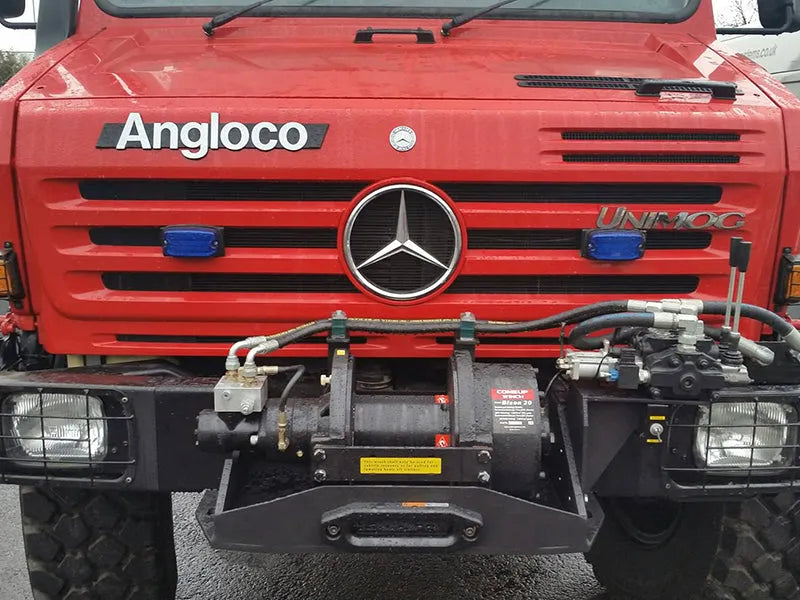

The BISON 20 is ideal for heavy goods vehicles, tow trucks and off-road vehicles with hydraulic PTO.
2. What type of cable is recommended?
We recommend a cable of 16 mm x 30 m with a minimum resistance of 179 kN.
3. Can it be used for lifting loads?
No, this winch is not designed for lifting people or objects.
4. What is the product warranty?
The COMEUP BISON 20 winch is guaranteed 12 months against any manufacturing defect.
Buy your COMEUP BISON 20 winch at Xperts4x4
Xperts4x4 is your specialist in off-road accessories and breakdown assistance. Order now and benefit from fast shipping in France and Europe.
