COMEUP DS 20 RS 12V Winch – Power and Reliability for your 4x4 Offroad
THE COMEUP DS 20 RS 12V winch is designed for demanding adventurers. With a 9,072 kg pulling force, it is perfect for off-road vehicles and extreme uses. Its high-strength synthetic cable ensures maximum safety while preventing water absorption and premature wear.
💪 Exceptional Performance
✅ Traction capacity: 9,072 kg (20,000 lb)
✅ Powerful engine: 5 220 W / 7.0 hp (12V)
✅ Fast line speed: 4.5 m/min empty
✅ CBS (Cone Brake Structure) automatic braking system
✅ Ultra-strong die-cast aluminum housing
✅ Ultra-resistant synthetic cable: 14 mm x 16.7 m
🔧 Technology and Security
✔ Built-in wireless remote control and waterproof wired remote control (5 m cable)
✔ 3-stage planetary gear for maximum efficiency
✔ Engine thermal protection against overheating
✔ BossHook Hook L made of ultra-strong SCM440 steel (MBS 18,200 kg)
✔ 250A fuse kit to prevent surges and short circuits

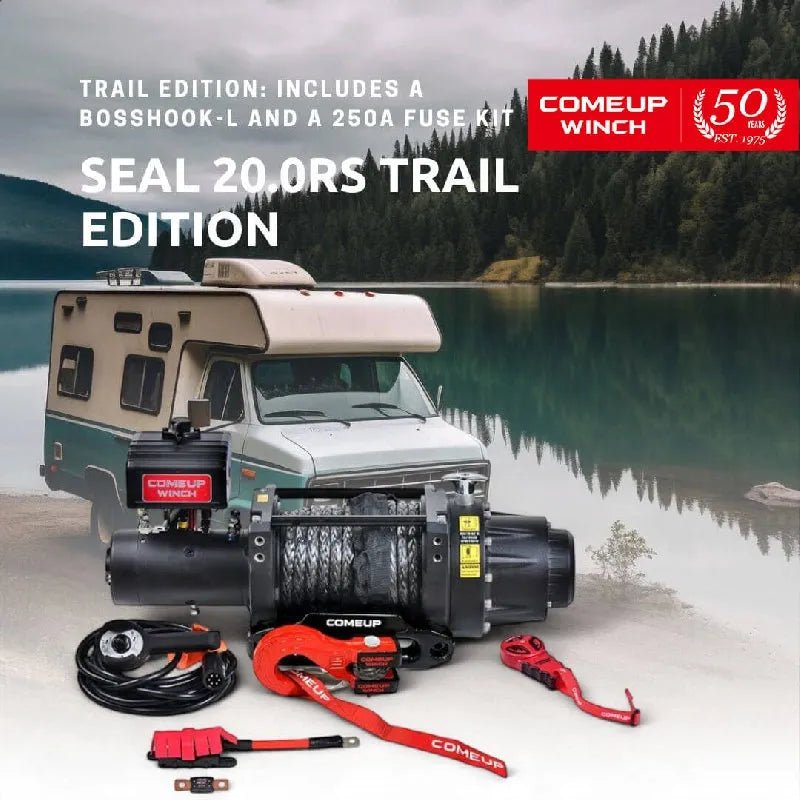

📦 Pack contents
✔ Hawse fairlead
✔ 5m wired remote control
✔ Built-in wireless remote control
✔ 14mm x 16.7m synthetic cable with BossHook L
✔ Detachable control box with 250A fuse
✔ 2 gauge battery cables (1.8 m)
✔ Hand safety strap
📏 Dimensions & Weight
📌 Poids total : 49,6 kg (109,3 lb)
📌 Poids brut : 63,6 kg (140,2 lb)
📌 Dimensions : 740 x 270 x 495 mm
🔍 Why choose the COMEUP DS 20 RS 12V Winch?
✅ CE certified (Machine Directive 2006/42/EC and SAE J706)
✅ Lifetime warranty on mechanics and 3 years on electronics
✅ Robust mounting with 254 mm x 114.3 mm or 254 mm x 165 mm drilling
✅ Ideal for 4x4s, Pickups, Offroad and extreme expeditions
FAQ – Everything you need to know about the COMEUP DS 20 RS 12V winch
➡ Is this winch compatible with all 4x4 vehicles?
Yes, it fits the pickups, SUVs, trucks and off-road vehicles, provided you have a mounting plate compatible with its drilling center distance.
➡ Why choose a synthetic cable rather than a steel cable?
THE Synthetic cable is lighter, safer and does not rustIt is also easier to handle and does not store energy if broken, reducing the risk of accidents.
➡ What is the difference between a wired and wireless remote control?
THE COMEUP DS 20 RS model includes both ! The wired remote control offers direct control, while the wireless remote control allows for a secure remote use.
➡ Is this winch suitable for extreme expeditions?
Absolutely! It is designed for withstand the harshest conditions, whether in expedition, off-road competition or intensive work.
➡ What is the product warranty?
THE COMEUP DS 20 RS winch benefits from a lifetime warranty on the mechanical part and 3 years on the electronics.
